FMSXY Linear Motor 2D Scanning Stage



Feinixs developed the integral 2D stage is used in some special applications. Sub-micron precision, integrated design, high reliability, can be used in various occasions requiring 2D motion. With FMC04 controller, it has the characteristics of micro-motion, high-speed, low-speed and so on.



The range of travel： The range can be customized；

Integrated design, compact size;

No reserved center hole, Can bear large loads;

Ultra-silent rotary stage：Suitable for laboratory environments and industrial sites with high performance requirements；

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



2D Scan、 Machine Vision、 Defect Detection、 Industrial Equipment

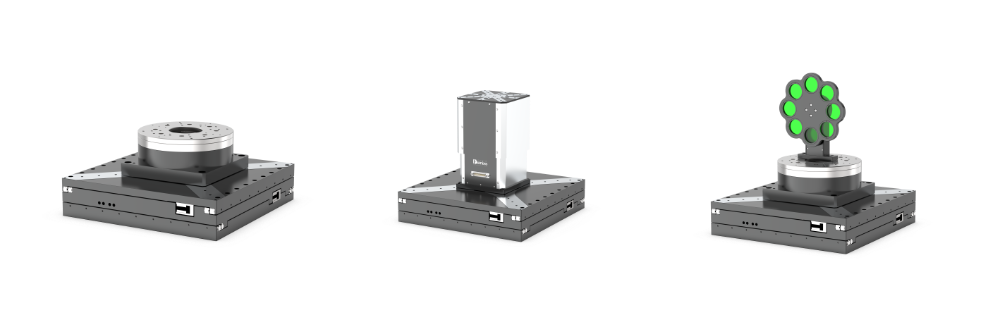

TYPICAL ASSEMBLY



It can be flexibly combined into multi-axis motion system,Contact for more information

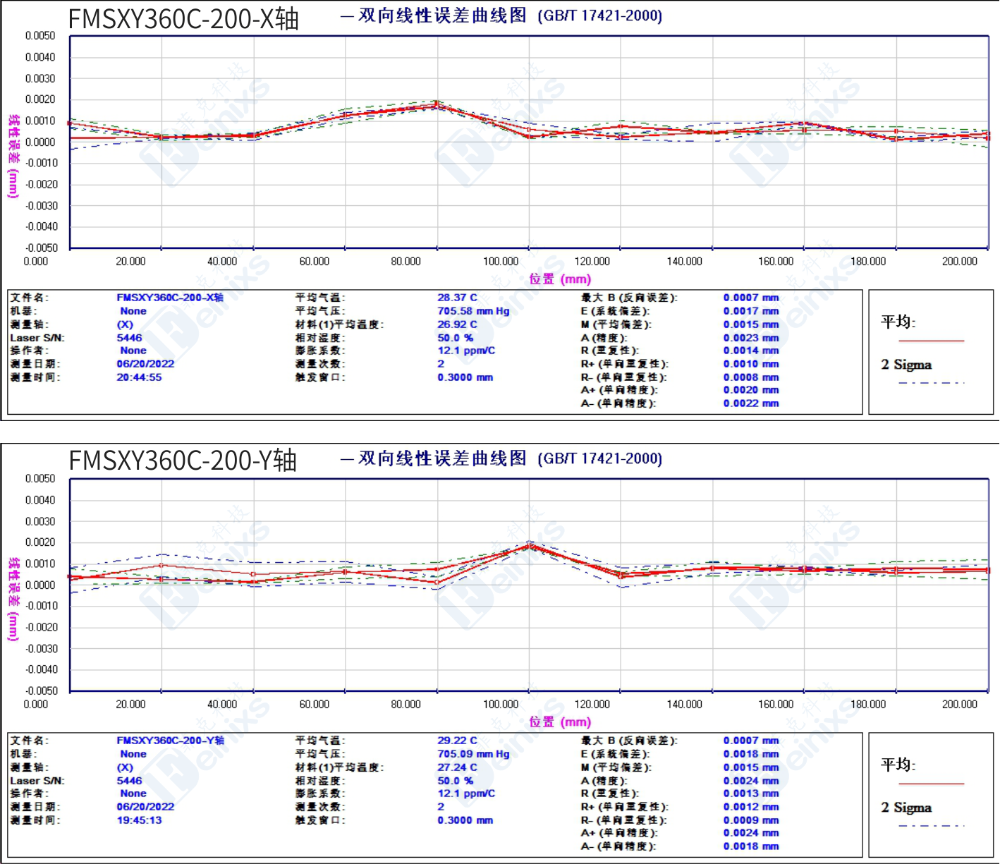

ERROR CURVE



Product parameters

Model

FMSXY360C-200-200

Travel(mm)

200(XY)

Load Capacity(Kg)[1]

10

Resolution(μm)

0.05

Min.Incremental Motion(μm)[2]

0.2

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.5 or 1

Undirection Repeatability/Typical(μm)

±0.3 or 0.6

Bi-Directional Repeatability/Guaranteed(μm)

±1 or 2

Bi-Directional Repeatability/Typical(μm)

±0.5 or 1

Accuracy[3]/Guaranteed(μm)

±2 or 4

Accuracy/Typical(μm)

±1 or 2

Max.Speed(mm/s)[5]

500

Straightness(μm)

10

Flatness(μm)

10

Yaw(arcsec)

20

Pitch(arcsec)

20

Weight(kg)

32



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor displacement stages and the stepping motor displacement stages, The minimum motion increment of the linear motor displacement stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , On the basis of the difference of the load and the controller it would be Make a difference
