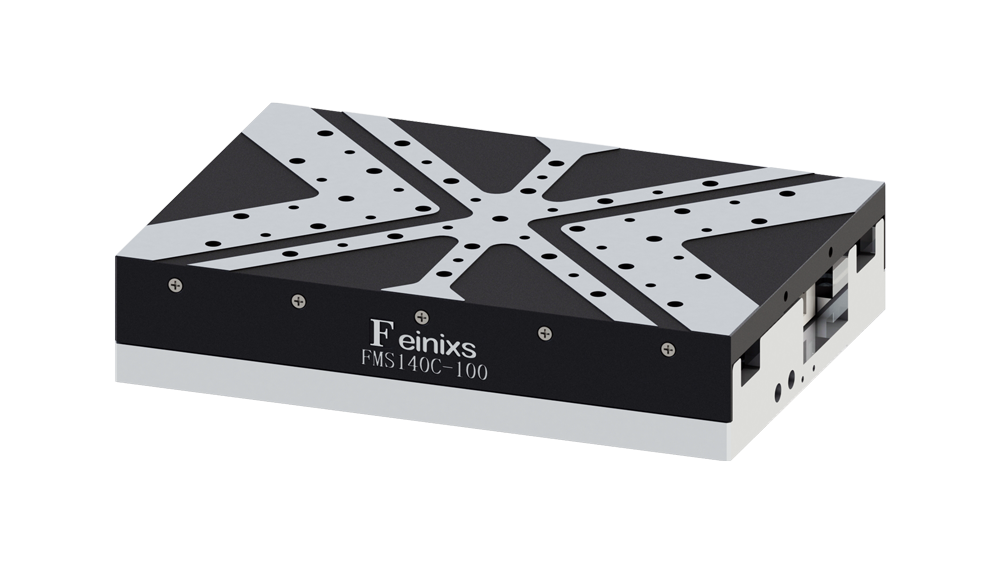

FMS140C-100 Overall Translation Large Stroke Stages



The long travel high precision cross roller motor Stages developed by Feinixs makes up for the travel gap between long travel linear guide and short travel cross roller guide Stages, which can reach sub-micron level of repeated positioning accuracy. Equipped with German integrated cross roller guide rail, operation accuracy G1 level, to ensure straightness and smaller size, at the same time matching imported non-core linear motor to ensure the uniformity of moving speed.



The range of travel：100mm；

Small format, low width, large load bearing design;

Integrated cross roller guide: reduce assembly errors;

the ultra-silent stages：Suitable for laboratory environments and industrial sites with high performance requirements；

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

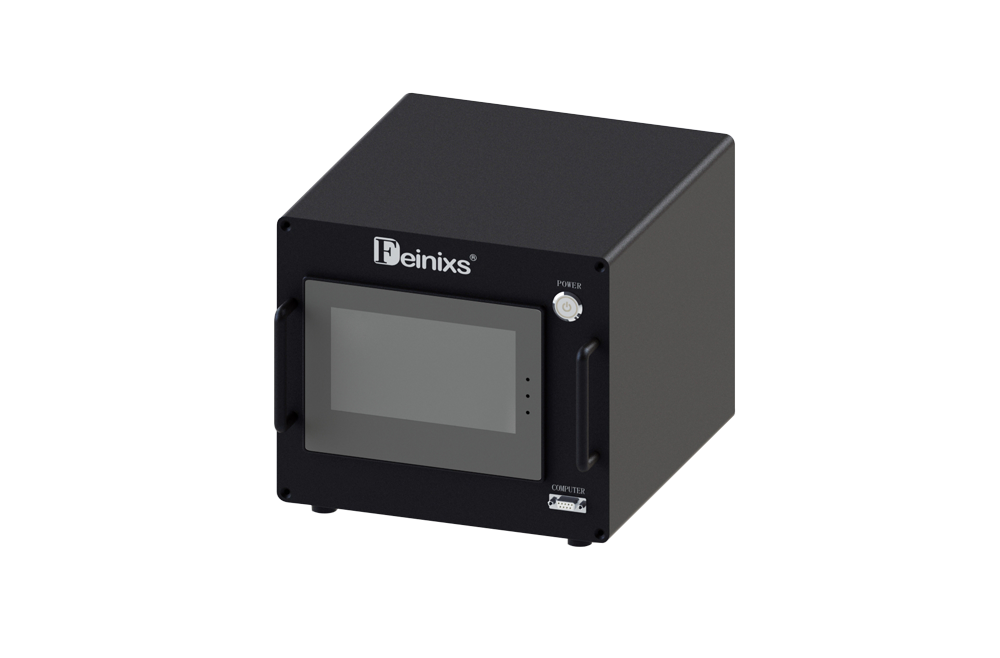

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Optoelectronics 、Microscan 、Optical Delay Line



TYPICAL ASSEMBLY

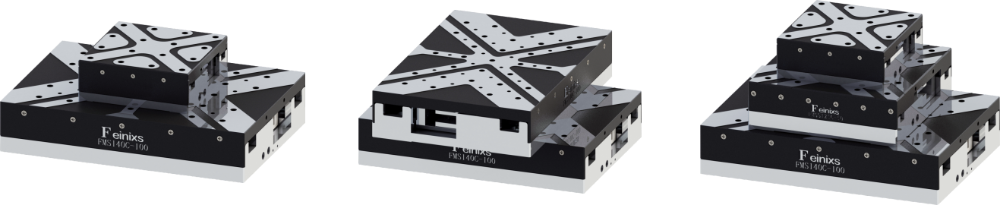

It can be flexibly combined into multi-axis motion system,Contact for more information

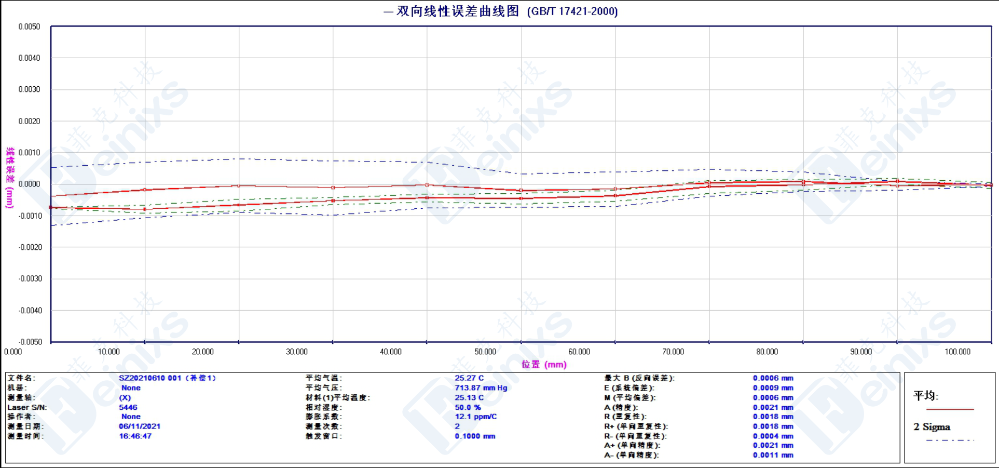

ERROR CURVE



Product parameters

Model

FMS140C-100

Travel(mm)

100

Load Capacity(Kg)[1]

10

Resolution(μm)

0.1

Min.Incremental Motion(μm)[2]

0.3

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.5 or 1

Undirection Repeatability/Typical(μm)

±0.3 or 0.6

Bi-Directional Repeatability/Guaranteed(μm)

±1 or 2

Bi-Directional Repeatability/Typical(μm)

±0.5 or 1

Accuracy[3]/Guaranteed(μm)

±2 or 4

Accuracy/Typical(μm)

±0.5 or 1

Max.Speed(mm/s)[5]

100

Straightness(μm)

6

Flatness(μm)

6

Yaw(arcsec)

15

Pitch(arcsec)

15

Continuous Force(N)

17.6

Peak Force(N)

88

Weight(kg)

3.6



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.
