FMS115R Stepper Motor High-precision Overall Motorized drive stages



For high-precision, heavy-load applications, Feinixs has designed the FMS115R series of motoried Stages, which use THK's P-precision cross roller guide rails with optional TBI,C7&C5 screw for excellent mechanical resolution. Feinixs standardized installation process ensures reliability and consistency, with high-performance controllers to achieve a variety of high-end features.



The range of travel：50mm、100mm

Low format design: Expediency multidimensional superposition;

High mechanical resolution: High precision; can be subdivided with the controller

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Opto-Mechanical Experiment 、Precision Measurement 、General Instrument Manufacturing

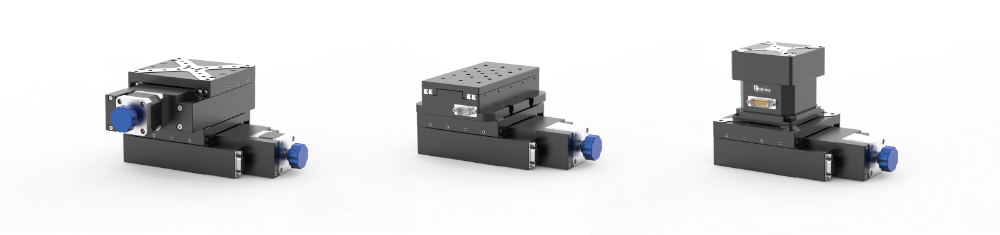

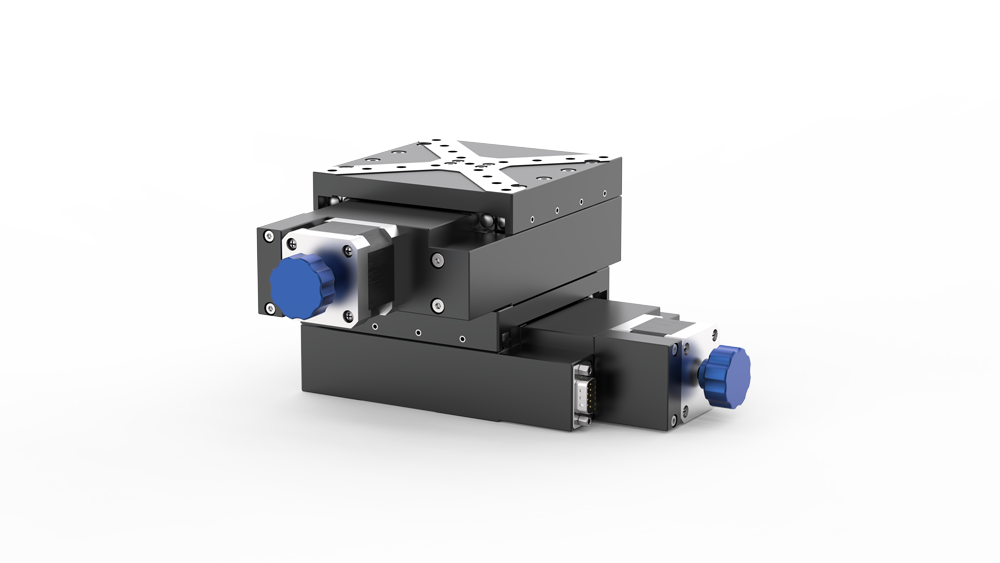

TYPICAL ASSEMBLY



It can be flexibly combined into multi-axis motion system,Contact for more information

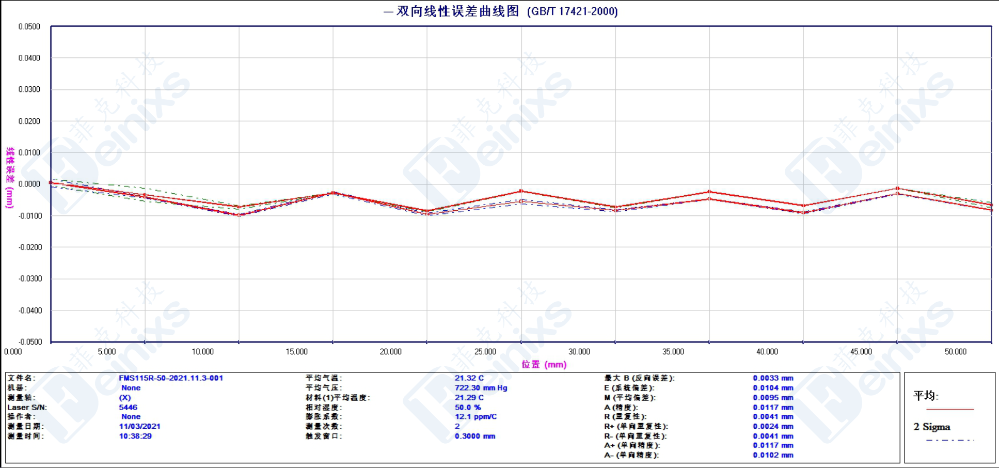

ERROR CURVE



Product parameters

Model

FMS115R-50

FMS115R-100

Travel(mm)

50

100

Load Capacity(Kg)[1]

20

20

Resolution(μm)

0.625

0.625

Min.Incremental Motion(μm)[2]

2

2

Undirection Repeatability[3]/Guaranteed(μm)[4]

±2 or 4

±2 or 4

Undirection Repeatability/Typical(μm)

±1 or 2

±1 or 2

Bi-Directional Repeatability/Guaranteed(μm)

±3 or 6

±3 or 6

Bi-Directional Repeatability/Typical(μm)

±2 or 4

±2 or 4

Accuracy[3]/Guaranteed(μm)

±15 or 30

±15 or 30

Accuracy/Typical(μm)

±10 or 20

±10 or 20

Max.Speed(mm/s)[5]

10

10

Straightness(μm)

10

12

Flatness(μm)

10

12

Yaw(arcsec)

25

30

Pitch(arcsec)

25

30

Weight(kg)

2.6

3.2



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.

Product size
