FMS80 Stepper Motor High-precision Stages



FMS80 series stepper motor high precision universal Stages compact structure, high cost performance. The extreme product control and assembly process of Feinixs ensure that the screw structure stages has ±2μm repeatable positioning accuracy. The FMS80 is self-locking, easy to control and easy to use. As a universal stages, it is widely used in laboratory and industrial scenarios.



The range of travel：50mm、100mm、150mm；

Solid frame design：Ensures XY-shaft assembly reliably with a maximum stroke of 150mm×150mm;

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；



APPLICATION  FIELDS



Optical Path Switching 、Teaching Instrument 、Optical Experiment 、General Equipment



TYPICAL ASSEMBLY

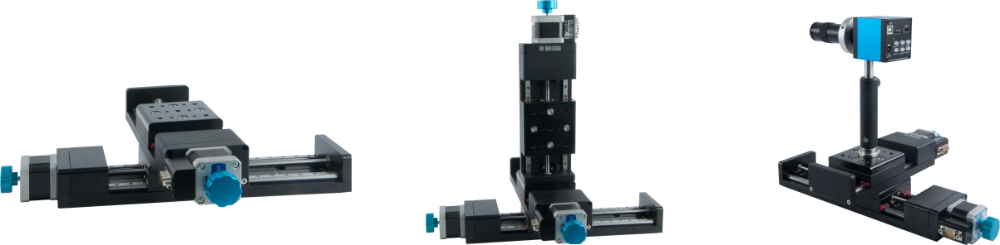

It can be flexibly combined into multi-axis motion system,Contact for more information



ERROR CURVE



Product parameters

Model

FMS80-50

FMS80-100

FMS80-150

Travel(mm)

50

100

150

Load Capacity(Kg)[1]

10

10

10

Resolution(μm)

0.625

0.625

0.625

Min.Incremental Motion(μm)[2]

1

1

1

Undirection Repeatability[3]/Guaranteed(μm)[4]

±1 or 2

±1 or 2

±1 or 2

Undirection Repeatability/Typical(μm)

±0.5 or 1

±0.5 or 1

±0.5 or 2

Bi-Directional Repeatability/Guaranteed(μm)

±2 or 4

±2.5 or 5

±3 or 6

Bi-Directional Repeatability/Typical(μm)

±1 or 2

±1 or 2

±1.5 or 3

Accuracy[3]/Guaranteed(μm)

±10 or 20

±12 or 24

±15 or 30

Accuracy/Typical(μm)

±5

±6

±8

Max.Speed(mm/s)[5]

10

10

10

Straightness(μm)

10

12

15

Flatness(μm)

10

12

15

Yaw(arcsec)

20

25

30

Pitch(arcsec)

20

25

30

Weight(kg)

1.6

1.8

2



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.
