FMS95R-20 DC Servo Motor High-precision Stages



For high-precision fiber coupling and high-precision three-dimensional adjustment market applications, Feinixs launched a targeted DC servo FMS95R-20 stages adopting Japan THK company SP-level cross roller guide, the European brand of DC servo integration screw motor, large table, thin body, can completely replace the current market mainstream imported fiber coupling Motorized drive stages.



The range of travel：20mm；

Compact structure design, small size;

Solid frame design：Ensures XY-shaft assembly reliably with a maximum stroke of 20mm×20mm;

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Microscopic Imaging 、Laser Processing 、High-Velocity Scanning 、Precision Measurement



TYPICAL ASSEMBLY

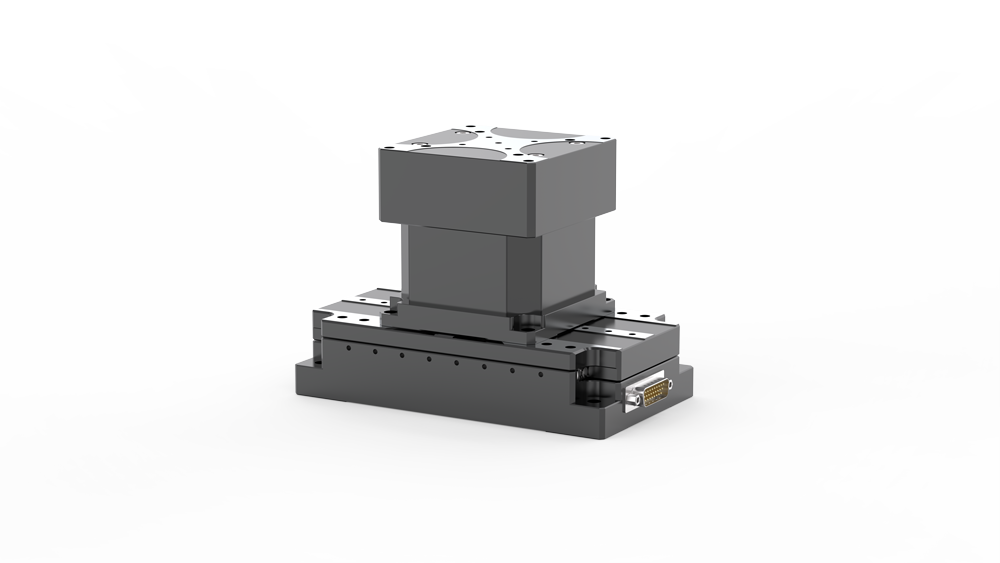

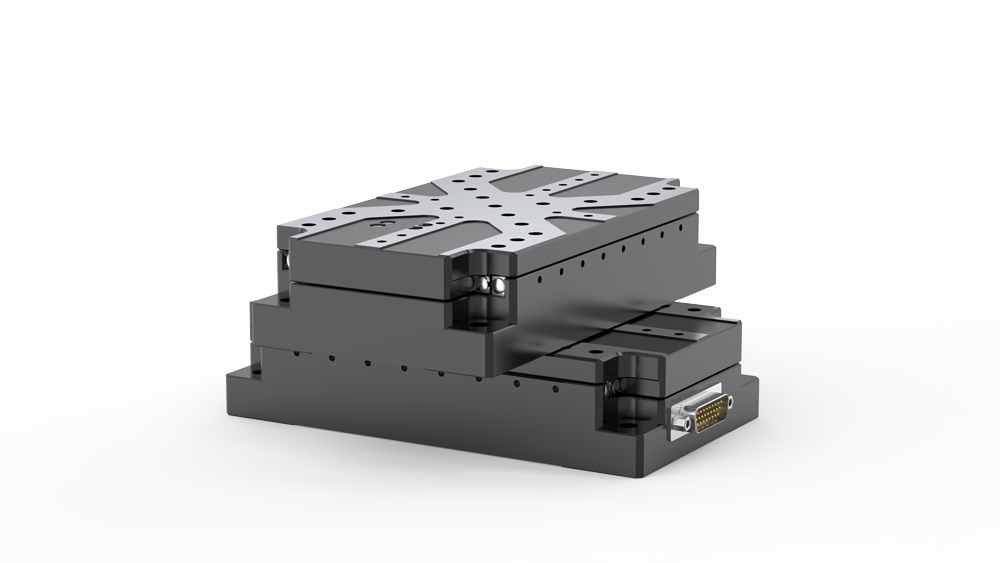

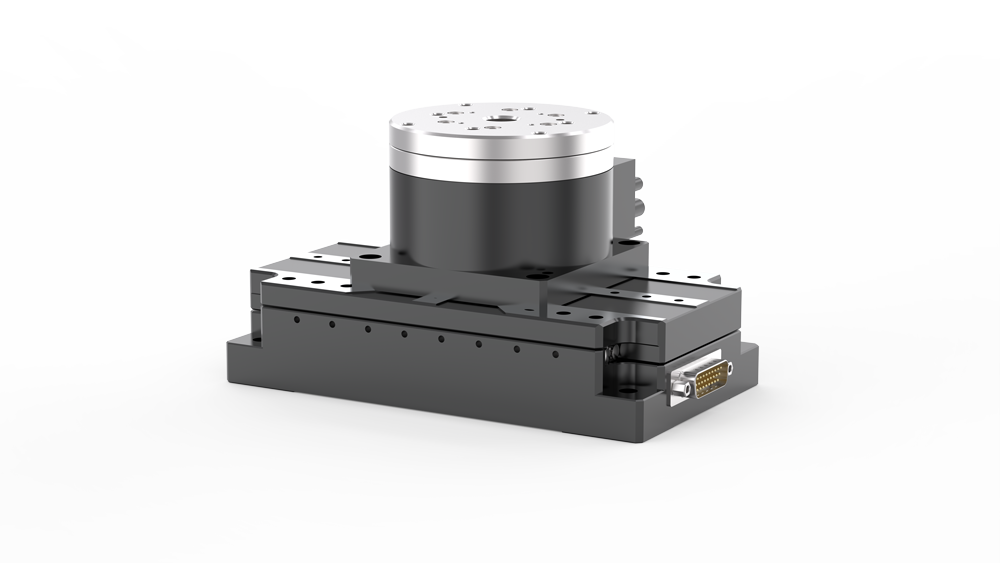

It can be flexibly combined into multi-axis motion system,Contact for more information

Product parameters

Model

FMS95R-20

Travel(mm)

20

Load Capacity(Kg)[1]

10

Resolution(um)

0.1

Min.Incremental Motion(um)[2]

0.5

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.3 or 0.6

Undirection Repeatability/Typical(μm)

±0.2 or 0.4

Bi-Directional Repeatability/Guaranteed(μm)

±0.5 or 1

Bi-Directional Repeatability/Typical(μm)

±0.3 or 0.6

Accuracy[3]/Guaranteed(μm)

±2 or 4

Accuracy/Typical(μm)

±1.6 or 3.2

Max.Speed(mm/s)[5]

10

Straightness(μm)

10

Flatness(μm)

10

Yaw(arcsec)

15

Pitch(arcsec)

15

Weight(kg)

1.45



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.
