FMSZ65C-08 Linear Motor Motorized Vertical Stages



It is difficult to design high-precision motorized vertical stages in the field of motion control under the application scenario of limited space. Feinixs developed the FMSZ65C-08 vertical Stages. The Stages is used with cylinder to balance the weight, and the linear motor + cross roller guide rail structure is designed to achieve the extreme Bi-Directional repeatability of ±0.1μm under the condition of adaptive load.



The range of travel：8mm；

Cylinder weight design: extremely compact volume;

Two sets of crossed roller guides: better guide stability;

Ultra-silent Stages：Suitable for laboratory environments and industrial sites with high performance requirements；

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Laser 、Sample Stages 、Opto-mechanical Test 、Precision Test Equipment

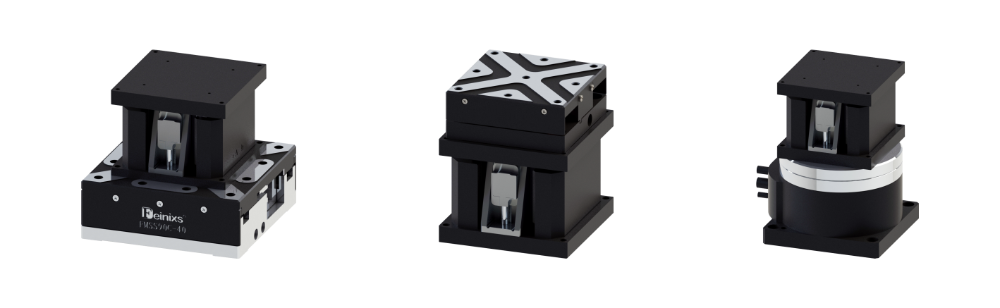

TYPICAL ASSEMBLY



It can be flexibly combined into multi-axis motion system,Contact for more information

Product parameters

Model

FMSZ65C-08

Travel(mm)

8

Load Capacity(Kg)[1]

0.5

Resolution(μm)

0.05

Min.Incremental Motion(μm)[2]

0.3

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.5 or 1

Undirection Repeatability/Typical(μm)

±0.2 or 0.4

Bi-Directional Repeatability/Guaranteed(μm)

±1 or 2

Bi-Directional Repeatability/Typical(μm)

±0.5 or 1

Accuracy[3]/Guaranteed(μm)

±2 or 4

Accuracy/Typical(μm)

±0.5 or 1

Max.Speed(mm/s)[5]

100

Straightness(μm)

5

Flatness(μm)

5

Continuous Force(N)

7.4

Peak Force(N)

29

Weight(kg)

0.6



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.
