FMSZ215S-H Heavy-duty Ultra-high-precision Servo Motor Motorized Vertical Stages

$7860 Delivery date：3-4 weeks

Model:

Product Consultation

Scan the QR code for consultation

Or make a phone call：

028-8586 4663

Send email：

info@feinixs.com
Product Details

FMSZ215S-H Heavy-duty Ultra-high-precision Servo Motor Motorized Vertical Stages



Feinixs developed FMSZ215S-H series of high-precision motorized vertical stages for high precision and heavy load movement occasions, which is used with servo motor + imported C3 screw + high-precision SP guide rail + grating ruler. The vertical Stages can do precision compensation through driving, has the advantages of fast speed, high precision, heavy load, applied to the occasion that needs to have self-locking ability.



The range of travel：100mm、200mm、300mm；

Power-off self-locking, extremely compact volume;

The precision compensation is realized by the Feinixs's controller;

Ultra-silent Stages：Suitable for laboratory environments and industrial sites with high performance requirements；

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Defect Detection 、Machine Vision 、Laser Target 、Sample Adjustment 、Dispenser 、Gantry Dual Drive Z Axis

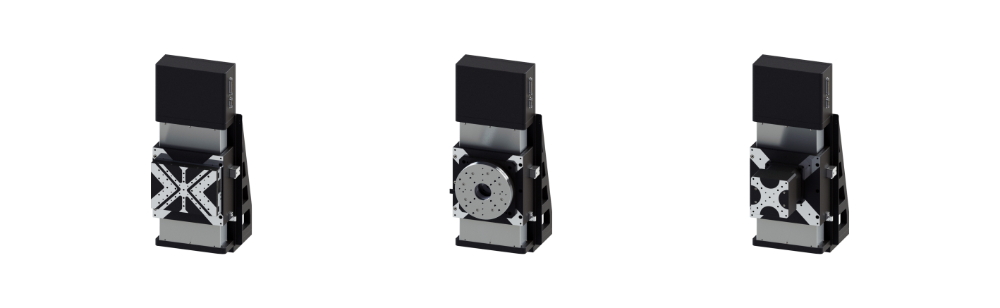

TYPICAL ASSEMBLY



It can be flexibly combined into multi-axis motion system,Contact for more information

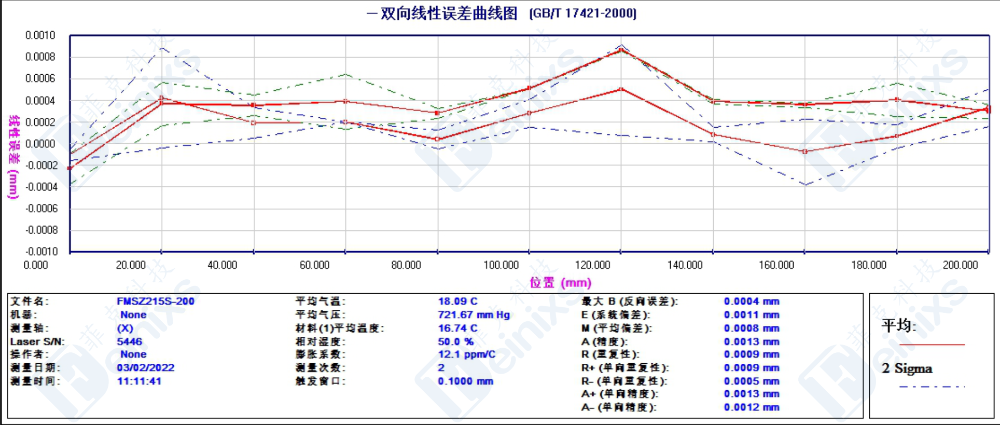

ERROR CURVE



Product parameters

Model

FMSZ215S-100H

FMSZ215S-200H

FMSZ215S-300H

Travel(mm)

100

200

300

Load Capacity(Kg)[1]

30

30

30

Resolution(μm)

0.1

0.1

0.1

Min.Incremental Motion(μm)[2]

0.5

0.5

0.5

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.3 or 0.6

±0.3 or 0.6

±0.3 or 0.6

Undirection Repeatability/Typical(μm)

±0.2 or 0.4

±0.2 or 0.4

±0.2 or 0.4

Bi-Directional Repeatability/Guaranteed(μm)

±0.5 or 1

±0.5 or 1

±0.5 or 1

Bi-Directional Repeatability/Typical(μm)

±0.3 or 0.6

±0.3 or 0.6

±0.3 or 0.6

Accuracy[3]/Guaranteed(μm)

±2 or 4

±2 or 4

±2 or 4

Accuracy/Typical(μm)

±1 or 2

±1 or 2

±1 or 2

Max.Speed(mm/s)[5]

100

100

100

Straightness(μm)

10

10

10

Flatness(μm)

10

10

10

Yaw(arcsec)

15

15

15

Pitch(arcsec)

15

15

15

Weight(kg)

22

25

28



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.

Product size
