FMSZ Stepper Motor Motorized Vertical Stages

In view of the situation that some systems cannot be blocked in all directions, Feinixs has developed the economical FMSZ series of integral vertical Stages. Shanghai MOONS’ motor with integrated lead screw is used, no coupling is required. Coupling eccentric disturbances are avoided. The built-in grating scale interface of Dalian Banyan is reserved, which can be closed-loop to further improve the accuracy. Let the volume, performance, stroke, and precision match very well.

The range of travel：20mm、50mm、120mm；

Lift with overall Stages, Power-off self-locking

Optional 0.5μm grating ruler for closed-loop control;

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT

APPLICATION FIELDS

Sample Stages 、Posture Adjustment 、Optical Test 、Optical Equipment

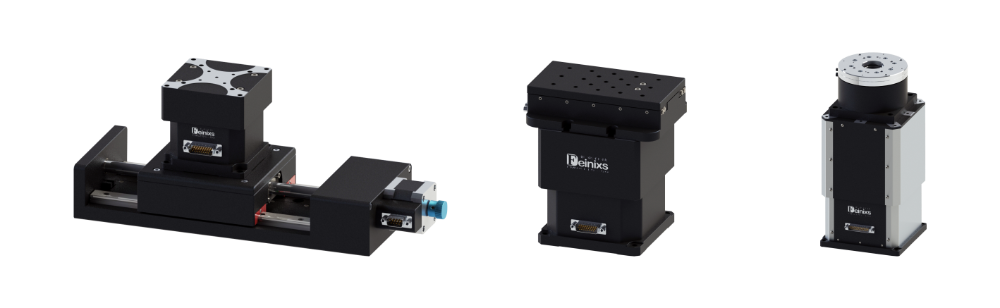

TYPICAL ASSEMBLY

It can be ﬂexibly combined into multi-axis motion system,Contact for more information

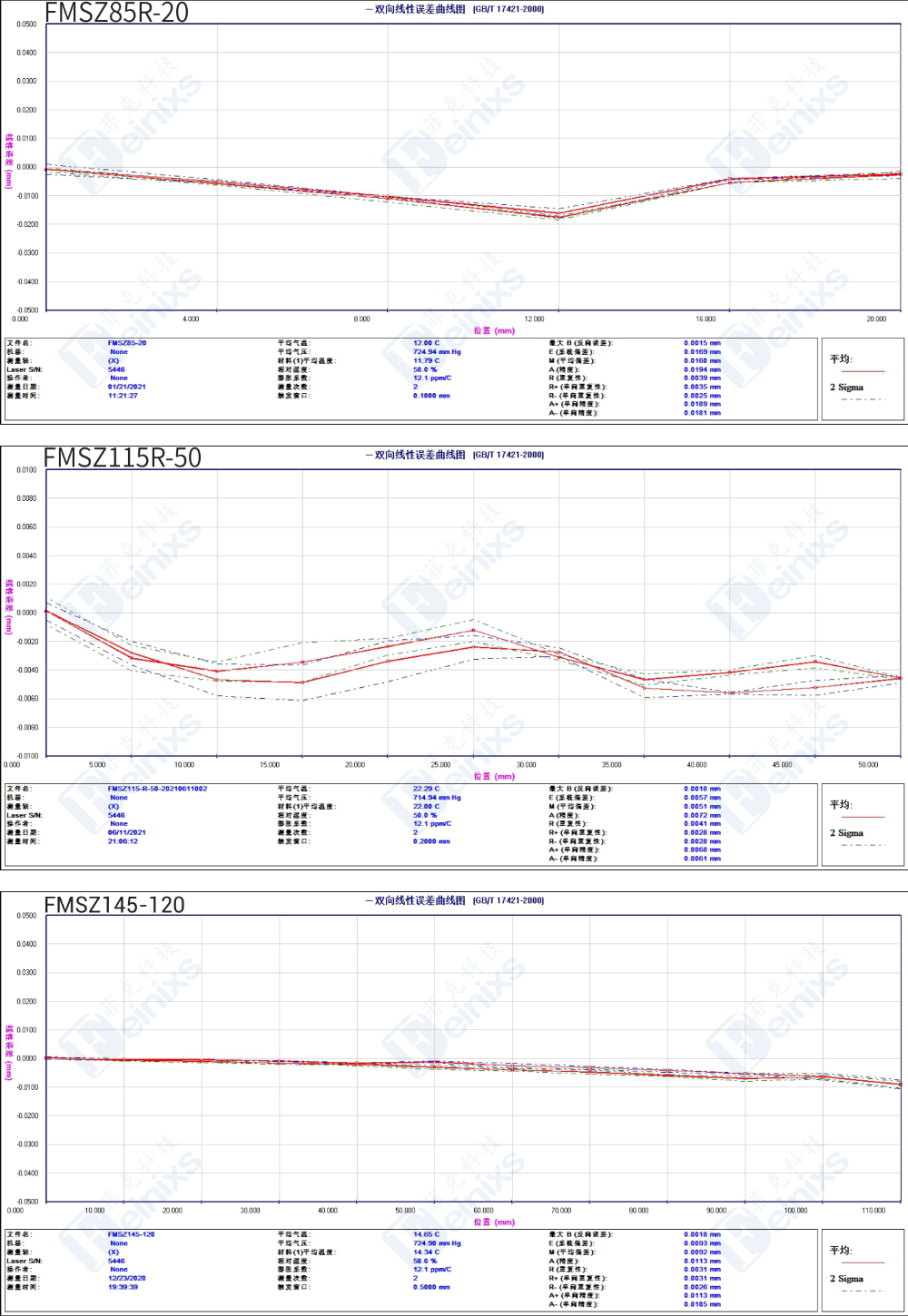

ERROR CURVE



Product parameters

Model	FMSZ85R-20	FMSZ115R-50	FMSZ145-120
Travel(mm)	20	50	120
Load Capacity(Kg)[1]	5	10	20
Resolution(μm)	0.625	0.625	0.625
Min.Incremental Motion(μm)[2]	2	2	2
Undirection Repeatability[3]/Guaranteed(μm)[4]	±1 or 2	±2 or 4	±2 or 4
Undirection Repeatability/Typical(μm)	±0.5 or 1	±1 or 2	±1 or 2
Bi-Directional Repeatability/Guaranteed(μm)	±2.5 or 5	±3 or 6	±4 or 8
Bi-Directional Repeatability/Typical(μm)	±1 or 2	±2 or 4	±2 or 4
Accuracy[3]/Guaranteed(μm)	±15 or 30	±20 or 40	±20 or 40
Accuracy/Typical(μm)	±10 or 20	±15 or 30	±15 or 30
Max.Speed(mm/s)[5]	10	10	10
Straightness(μm)	15	15	15
Flatness(μm)	15	15	15
Yaw(arcsec)	30	40	60
Pitch(arcsec)	30	40	60
Weight(kg)	1.2	2.9	6.8

Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.



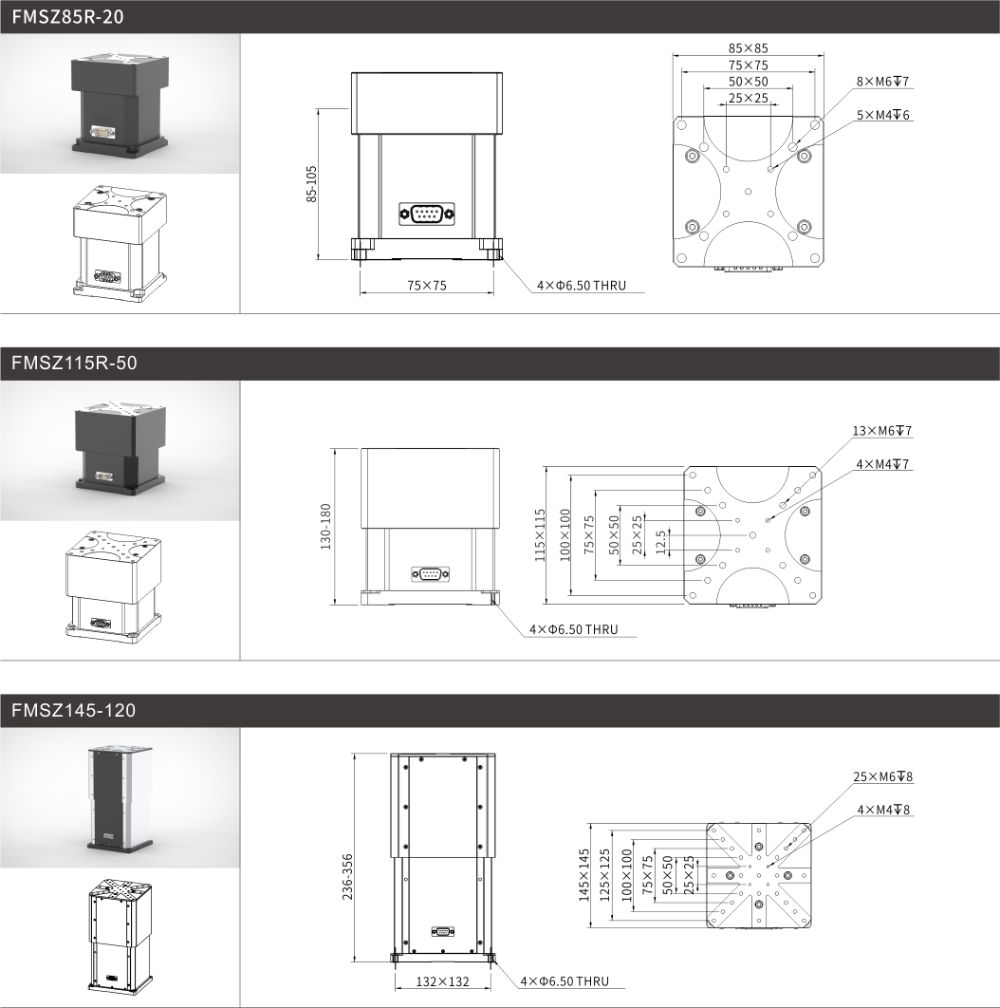

Product size


