FMSZ200S-50 High-precision Servo Motor Motorized Vertical Stages

$7900 Delivery date：3-4 weeks

Model:

Product Consultation

Scan the QR code for consultation

Or make a phone call：

028-8586 4663

Send email：

info@feinixs.com
Product Details

FMSZ200S-50 High-precision Servo Motor Motorized Vertical Stages



In response to the need for high precision and large load capacity in vertical motion scenarios, Feinixs has developed the FMSZ200S-50 high-precision servo motor vertical Stages. This product uses advanced servo motors, paired with imported C3 lead screws, high-precision SP-level guide rails, and grating scale structures, ensuring exceptional precision and stability. The design of the integrated tabletop fully considers the application requirements for unobstructed access from all directions. The Stages can achieve precision compensation through drive control, featuring relatively fast speed and high precision, while also having strong load capacity. It is particularly suitable for scenarios that require a self-locking function, perfectly meeting the demands of various high-end applications.



The range of travel： 50mm；

Power-off self-locking, extremely compact volume;

The precision compensation is realized by the Feinixs's controller;

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT



APPLICATION  FIELDS



Defect Detection 、Machine Vision 、Laser Target 、Sample Adjustment 、Dispenser

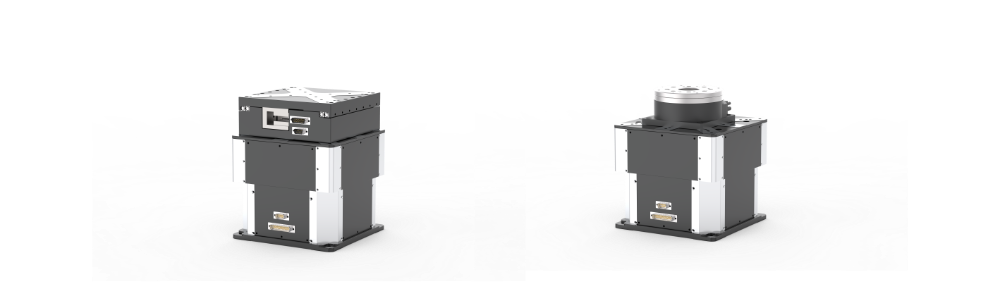

TYPICAL ASSEMBLY



It can be flexibly combined into multi-axis motion system,Contact for more information

Product parameters

Model

FMSZ200S-50

Travel(mm)

50

Load Capacity(Kg)[1]

10

Resolution(μm)

0.05

Min.Incremental Motion(μm)[2]

0.2

Undirection Repeatability[3]/Guaranteed(μm)[4]

±0.3 or 0.6

Undirection Repeatability/Typical(μm)

±0.2 or 0.4

Bi-Directional Repeatability/Guaranteed(μm)

±0.5 or 1

Bi-Directional Repeatability/Typical(μm)

±0.3 or 0.6

Accuracy[3]/Guaranteed(μm)

±2 or 4

Accuracy/Typical(μm)

±1 or 2

Max.Speed(mm/s)[5]

10

Straightness(μm)

5

Flatness(μm)

10

Yaw(arcsec)

20

Pitch(arcsec)

20

Weight(kg)

13.5



Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The  minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.
