Product Details

FMSR-DHA High Performance Direct Drive rotation Stages

FMSR-DHA series adopts absolute encoder with iron core motor. Compared with the original FMSR-DH series, the FMSR-DHA series is not afraid of harsh application environments such as dust and oil.And using the absolute value encoder, rather than the incremental encoder.

The range of travel：from 65mm to 230mm, The larger size can be customized；

Equipped with imported direct drive motor;

Equipped with high-precision bearing;

Ultra-silent stages：Suitable for laboratory environments and industrial sites with high performance requirements；

Free standard edition SDK：Multiple development languages are supported in the Window or Linux environment；Such as C/C++、C#、Matlab、LabVIEW etc；

The controller：Realize arc interpolation, linear interpolation, position memory to lead into arbitrary-graphics；

Option:Bus control of EtherCAT

APPLICATION FIELDS

Optical Path Switching 、Industrial CT 、Semiconductor Inspection 、Machine Vision 、Medical Beauty

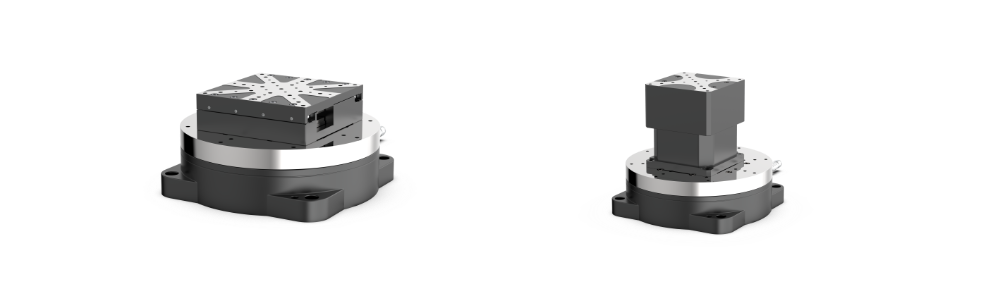

TYPICAL ASSEMBLY

It can be ﬂexibly combined into multi-axis motion system,Contact for more information

ERROR CURVE



Product parameters

Model	FMSR65DHA	FMSR118DHA	FMSR180DHA	FMSR230DHA
Travel(°)	360	360	360	360
Load Capacity(Kg)[1]	5	10	20	40
Load Capacity(Inverted/Wall Mounting)(Kg)	2	5	10	20
Resolution(°)	0.0007	0.0007	0.0007	0.0007
Min.Incremental Motion(°)[2]	0.001	0.001	0.001	0.001
Undirection Repeatability[3]/Guaranteed(°)[4]	±0.003 or 0.006	±0.003 or 0.006	±0.003 or 0.006	±0.003 or 0.006
Undirection Repeatability/Typical(°)	±0.002 or 0.004	±0.002 or 0.004	±0.002 or 0.004	±0.002 or 0.004
Bi-Directional Repeatability/Guaranteed(°)	±0.005 or 0.01	±0.005 or 0.01	±0.005 or 0.01	±0.005 or 0.01
Bi-Directional Repeatability/Typical(°)	±0.004 or 0.008	±0.004 or 0.008	±0.004 or 0.008	±0.004 or 0.008
Accuracy[3]/Guaranteed(°)	±0.01 or 0.02	±0.01 or 0.02	±0.01 or 0.02	±0.01 or 0.02
Accuracy/Typical(°)	±0.005 or 0.01	±0.005 or 0.01	±0.005 or 0.01	±0.005 or 0.01
Max.Speed(°/s)[5]	3600	1800	3600	1800
Face Runout/Guaranteed(μm)	5	5	5	5
Radial Runout/Guaranteed(μm)	5	5	15	15
Weight(kg)	0.85	2.2	15	15

Remark：

[1]：The vertical-load of the center under the Horizontal-placement。

[2]：The minimum motion increment is not the same as resolution,It means the minimum amount that a motion system can move in a continuous, stable situation. Generally, The resolution of the system is much smaller than the minimum motion increment. In consideration of the influence of transmission structure and the system error of the encoder, To compared with the linear motor Motorized drive Stages and the stepping motor Motorized drive Stages, The minimum motion increment of the linear motor Motorized drive Stages is more closer to the resolution.

[3]：The accuracy measurement data is the data measured by the laser interferometer when the platform is placed horizontally. The measurement standard reference to GB/T17421-2000

[4]：The difference between typical values and guaranteed values is described in the Technical Guide.

[5]：The maximum speed is typical values , on the basis of the difference of the load and the controller it would be Make a difference.



Product size


